Solid Sides/Back with Event Front & 4’ Back Feed Room

Solid Sides/Back with Event Front & 4’ Back Feed Room

Protect Your Animals All 4 Seasons of the Year!

Noble Shelters are designed and built to protect your animals during all four seasons of the year. They provide a warm dry shelter through the fall and winter and a cool shaded retreat during the spring and summer months.

This Shelter measures 12’ wide x 16’ deep (standard) and includes an additional 2’ roof overhang in the front. It is 8’ high at the front and slopes down to 7’ high at the back of the livestock area and 6’ 6” high at the back of the feed room.  The front of this Shelter is enclosed with an Event Front, or can be ordered with an Open Front Bow. Extended height option available upon request.

This Shelter includes a 2/3 Grilled Divide Back Wall with a feed door (between livestock area and feed room).  Also includes a man door in the back of the feed room (also makes a lock-able entrance).

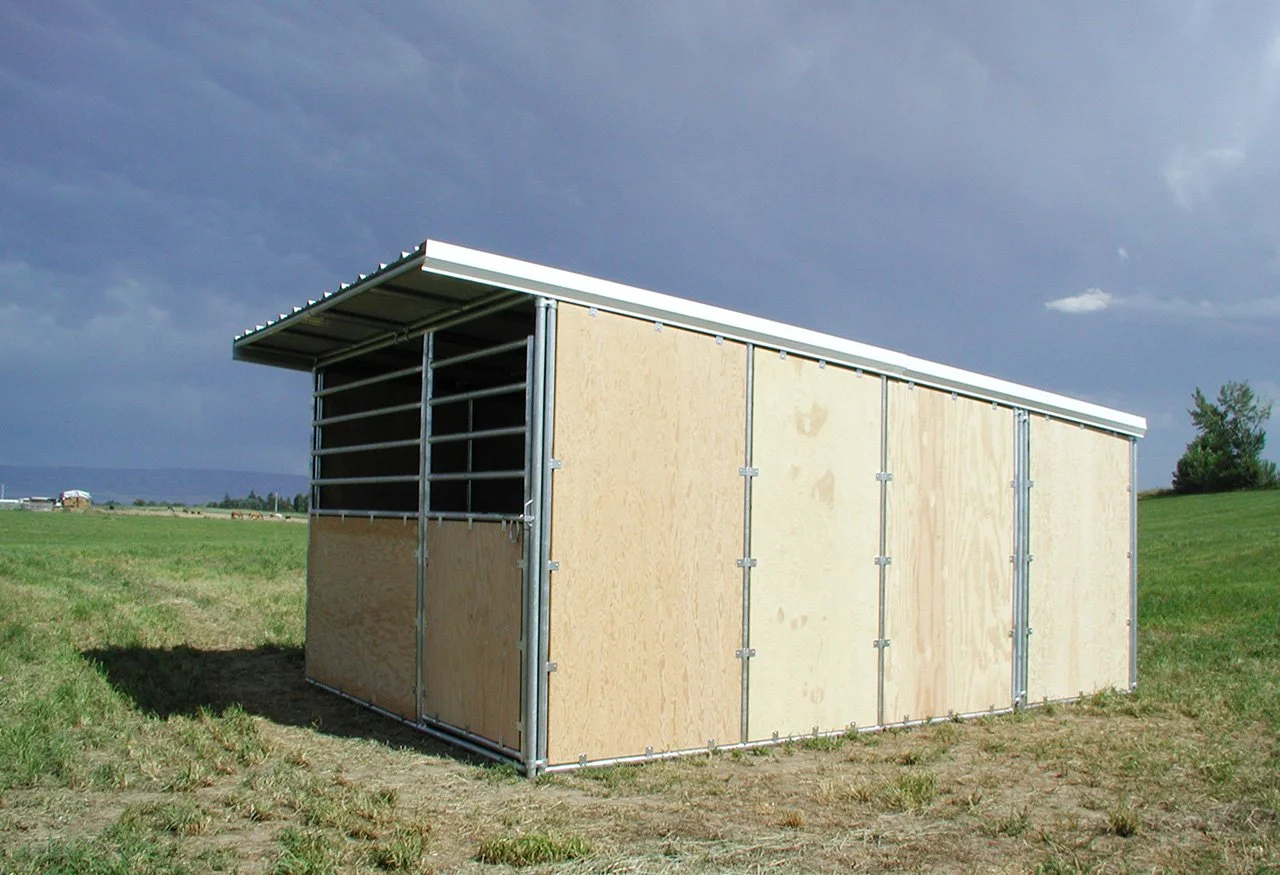

  • A small metal barn-like structure with plywood walls and a sloped roof, situated on a grassy field under a cloudy sky.
  • A metal and plywood shed on a grassy field with trees in the background and cloudy sky.
  • Small metal shed with wood paneled walls and a sloped metal roof on a grassy lawn, with a white fence and houses in the background under a blue sky.

We use a heavy 15 gauge round galvanized steel tubing to manufacture our Shelters. Both 1 7/8” diameter and 1 5/8” diameter material we fabricate with is made right here in the USA. We chose this material for its superior strength and longevity. A round tube is stronger than a square or rectangular tube of equal weight and size. Like all Noble products, our Shelters have a galvanized finish for unequalled rust protection.

Our unique plywood mounting tab is used to secure ¾” plywood of any grade (not included) to a solid Shelter wall. This design allows each sheet of wood to be recessed inside the wall panel. There are no exposed edges or corners of wood for livestock to chew or crib on. When installed, each piece of wood will have a small air gap around the perimeter (approximately 1/8’ to ¼’). These perimeter openings offer solutions to commonly asked questions regarding lighting and ventilation. First, animals are more likely to enter a Shelter when there is some visible lighting (ie. not a dark hole or box). Second, health issues arise when livestock are contained in poorly ventilated areas. Body heat and moisture can create health problems for many different animals where there is little ventilation.

Noble Shelters are expandable. With our modular design, you can order a longer version of this Shelter (in 12’ increments), attach additional Shelters to existing ones, or you can change the design or layout of a previously erected Noble Shelter. Any wall can be made to be solid (wood ready), railed (5 or 6 rail Panel/Gate), or full open for walk-through (no tabs).

Noble Shelter frames are quick and easy to erect. They come with assembly hardware and an easy-to-read set of instructions with plywood cutting diagrams (including roof metal recommendations).

Our Shelters are sold standard as a frame kit only.  Concrete Anchor Kit, Noble Board & Roof Metal/Trim are all sold separately. Shelters with plywood mounting tabs MUST have plywood installed prior to use.

*Since Noble Shelters are expandable and have a variety of options, photos shown on this site may not be the standard size/configuration.  They may be a variation of the standard product.
