Concrete Anchor Kit (for dirt/gravel applications)

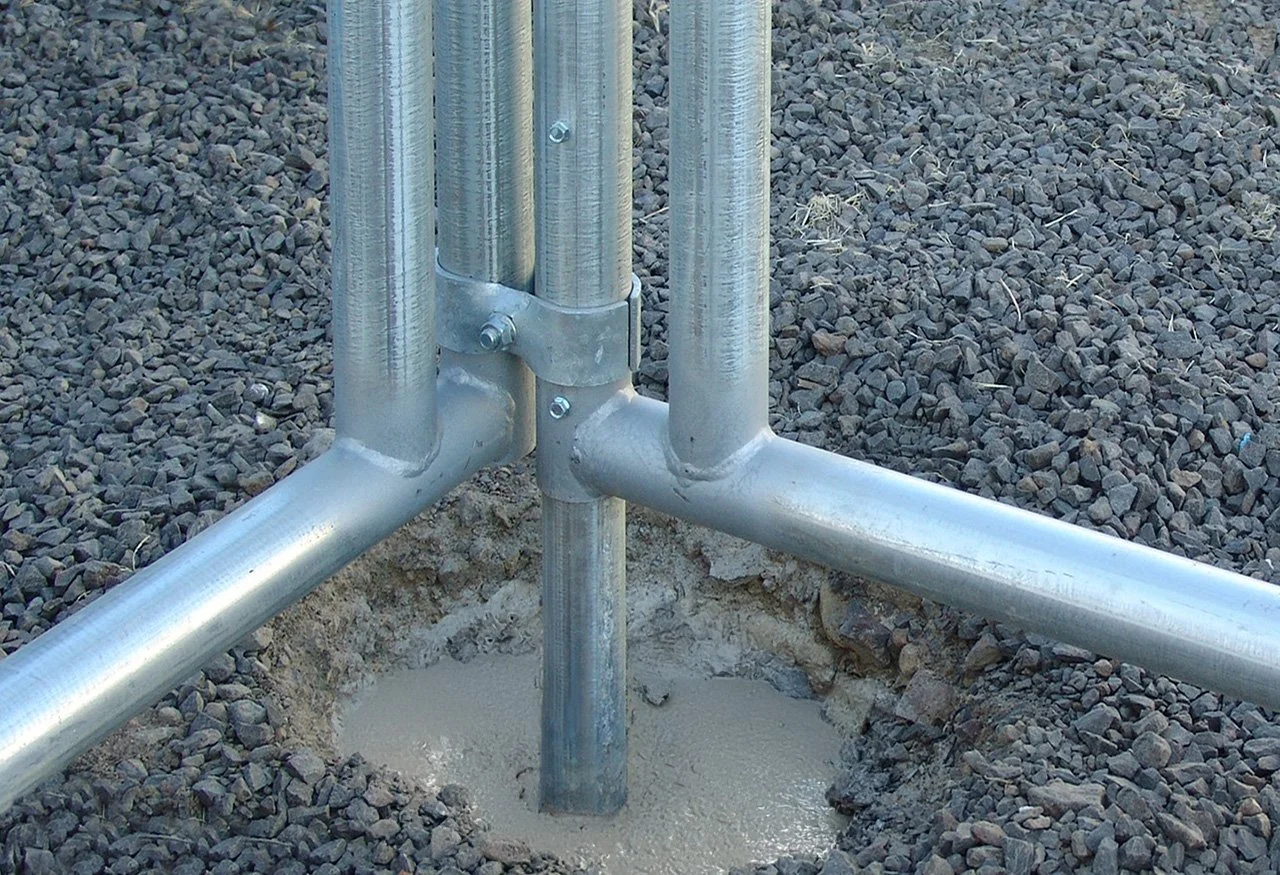

The Noble Concrete Anchor Kit is used to properly secure a Noble Shelter, Trainer Series Barn or Shedrow to the ground.  These anchors insert up and into the bottom of each divide / side wall of the structure. Anchors are heavy sched 40 galvanized pipe that is held in place with self-tap sheet metal screws  This pipe is inserted 12” up and into the end upright of each divide wall and end wall of the structure.  The 24” imbed depth of anchor is then concreted in place (minimum 12” diameter hole)  Included with all Noble Trainer Series Barns & Shedrows.  Sold Separately for Noble Shelters.

Concrete Anchor Plate, (for concrete flat slab or concrete footing/stem wall)

Noble Concrete Anchor Plates are used to properly secure a Noble Trainer Series Barn, Showman Series Barn or Shedrow to a flat concrete slab or concrete footing/stem wall. These heavy mild steel 8”x9” Plates are embedded into a concrete slab on concrete footing/stem wall when poured.  Each Plate includes integrated steel studs which protrude below the plate and into the concrete.  These plates are strategically placed in all corners of each stall.  The stall wall is welded into place during assembly of barn (with supplied bracketry).The Noble Box Fan Frame is designed to mount to the top of your Noble Square Stall Fronts to help circulate the air in your stalls.  This fan frame is made from galvanized angle iron and is built to accept a standard 20” x 20” box fan (fan not included).  The frame and fan should mount high above the stall and be positioned 45° from the ground (no tools needed to install).  Only works with Noble Square Tube Stall Fronts or Dividers.
