Trainer Series Horse Barns

Trainer Series Horse Barns

Noble Trainer Series Barns are a pre-fabricated stall barn with a 12’ wide center aisle. Barns are 36’ in width and are available in lengths from 24’ to 120’, depending on the number of stalls needed. The Noble Trainer Series Barn is expandable. Its modular design allows more stalls to be added at any time. Perfect for your ever-changing equine program.

Customize Your Barn Size and Layout

We use a heavy 15 gauge Round Galvanized Steel Tube to manufacture our Trainer Series Barn. The 1 7/8” diameter mechanical grade material we fabricate with, is made right here in the USA. We chose this material for its superior strength and longevity.

The Trainer Series Barns are fabricated to accept ¾” board (ACX Plywood, Poly/Ply Board, or FRP Board). A unique plywood mounting flange is used to secure each piece of wood in place. Once the plywood is cut to size (as per cut diagram) it will get mounted against the mounting flange with a T-Nut and Machine Screw (supplied in each installation kit). This design allows each sheet of wood to be recessed inside the steel frame (to prevent horses from chewing on wood).

The Noble Trainer Series Barn is priced as a frame-only kit.  The kit comes with ground Anchors, Exterior Walls, Interior Stall Walls, Roof Trusses and Roof Purlins. The Barn comes standard with Noble Event Stall Fronts along the center aisle (can be exchanged for a Solid Front to use as a tack room or an Open Bow Front (for hay storage). It also comes standard with Solid Dividers between stalls (can be upgraded to a Grilled Divide, a 2/3 Grilled Divide or an Open Bow Divide for a larger stall). The barn comes standard with a Solid Stall Back Wall standard. You can add an optional Outside Paddock Door to this back wall for entrance into an exterior paddock/run.

Additional options include: Double Sliding Breezeway Doors (at ends of center aisle), Noble Board (ACX Plywood, Poly/Ply Board, or FRP Board), Roof Metal/Trim, and Roof Insulation (heat reflector in warm weather and heat retainer in cold weather). Also available is our One Foot Roof Overhang Package. This can be added to enhance the overall look of the Barn and to provide more weather protection.

  • A metal-framed greenhouse with beige walls, situated outdoors on a gravel path with a clear blue sky in the background.
  • A large, metal and beige fabric greenhouse structure on a dirt field, with an open sliding door on the right side.

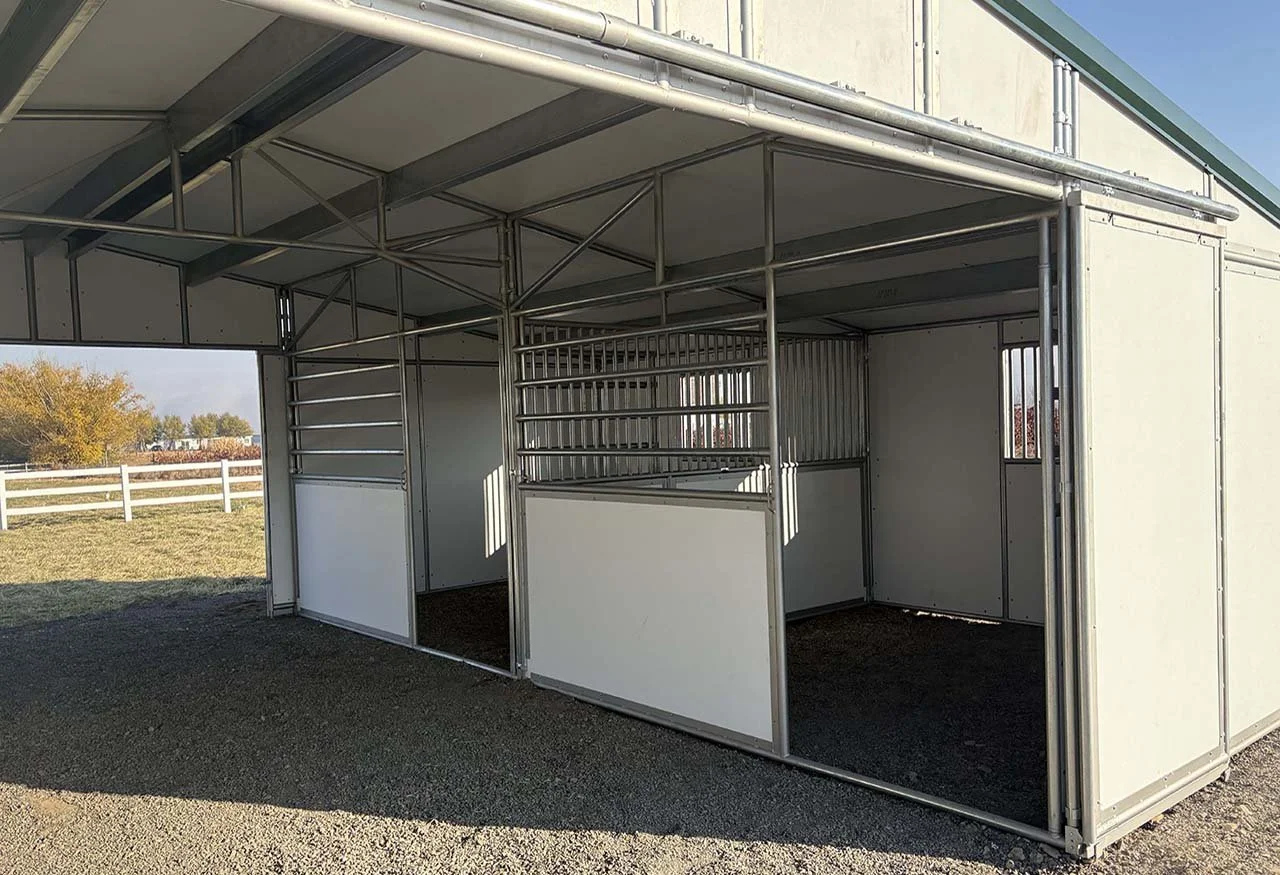

  • Metal livestock stall or pen with white panels and horizontal bars inside a barn or shelter
  • Blank white wall with a small faucet on a stand in front, right side showing storage with hay bales.

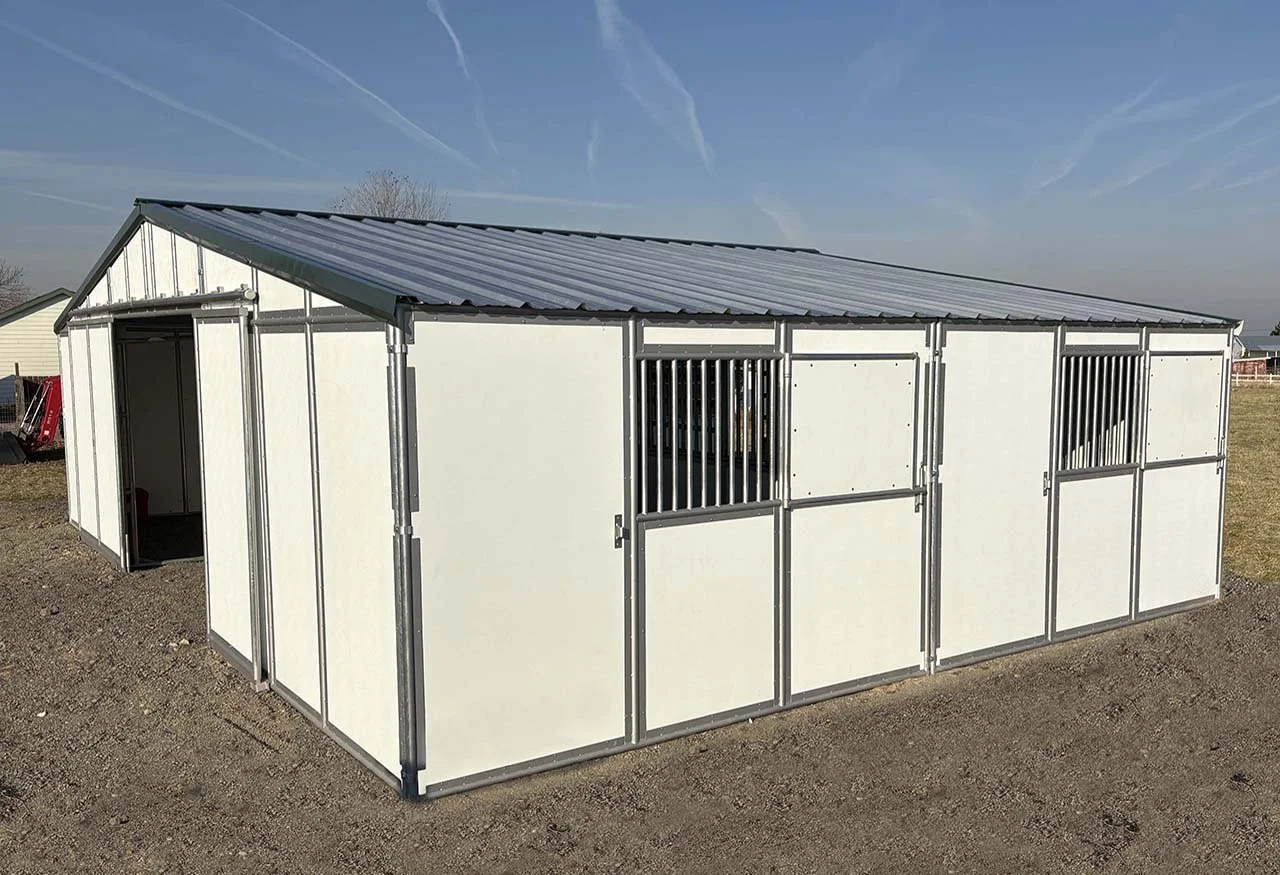

  • A white metal and wood stall structure with a sloped metal roof, featuring multiple windows with bars and doors, situated outdoors on a gravel surface under a partly cloudy sky.

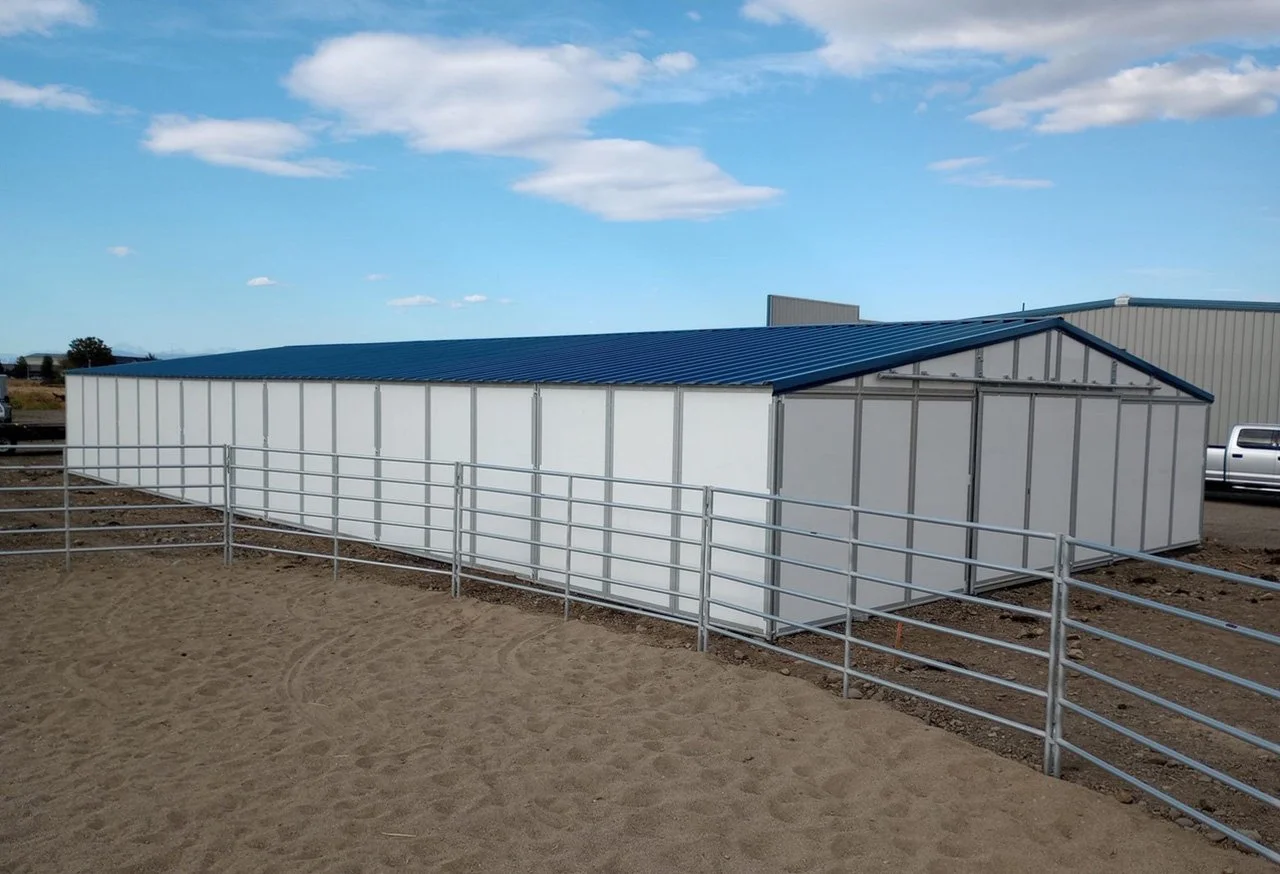

  • Empty metal horse barn with open doors, interior stalls, and metal fencing, situated on a gravel surface near a grassy field and distant trees.
  • White metal building with a peaked roof, set against a blue sky with scattered clouds, and gravel ground in front.
  • A barn with yellow metal siding and a red roof, set on a concrete pad, is surrounded by trees and open farmland in the background.
  • A beige shed with metal framing and multiple doors on a grassy area with a gravel path, cloudy sky, and leafless trees in the background.
  • A metal and beige fabric shed with gates, set on a concrete slab, surrounded by leafless trees and a grassy area.
  • A white metal shed with a corrugated roof enclosed by a metal railing on a red dirt field with mountains in the background.

  • “I can honestly say that I will never build another barn that does not have Noble.”

    I can’t tell you how impressed I am with the Noble product.  I built a 16 stall barn for our cutting horse program and from the moment I started working with the Noble crew on design on thru to delivery and erection they never stopped impressing me.  This barn is heavy duty, well built and not one step was skipped, from the greaseable hinges on all moving parts to the innovative feed doors and the Swing Door Saddle Rack that allows me easy access to all my gear.

    In our program we see a whole lot of different horses from the seasoned show horse to the young prospect and everyone is comfortable and at ease in the Noble Stalls (not to mention that the Noble Feeders allow us to keep grain separate from the hay while reducing hay waste).   I can honestly say that I will never build another barn that does not have the NOBLE name on it, Don and his camp believe and stand by a product that I am proud to own.

    —KJ K.

  • “We chose to be Totally Noble.”

    TOTALLY NOBLE - that’s what the Bonina cattle and horse ranch is! With the cooperation and innovation of the Noble crew, we have built one of the most practical, usable, versatile and neat-appearing outfits of its kind.

    We just completed two bull sales and the cattle display pens are second to none. Gates work well for moving cattle in and out, the fences are strong and high, the overall look is professional.

    Our Noble horse facility includes FRP stalls and runs bordering the arena, a trainer-series barn with runs plus event stalls for guests at the shows held at Bonina. Horses are safe and enjoy the runs. Noble hay feeders with trays for feeding salt, grain and mineral fit neatly into stall corners.

    One of the most unique aspects of the Noble business is its willingness to create designs and sizes that fit individual needs. Special requests are handled with a smile.

    We chose to be TOTALLY NOBLE and are glad we did!

    —Bob & Nina Lundgren, Bonina, Inc

  • “Highly recommend this team.”

    Noble Panels has been an excellent partner for me to develop a very custom barn and arena.  The expertise they have in stalls, cross ties, matting, waterers, dutch doors, hitching posts, and arena design is superb to any other vendors I contacted.  Their service is 5 Star.  The response time on questions and design issues were amazing and saved me months in construction time.  The delivery of the material was timely, as promised, and in excellent shape.

    Charlie and his team were excellent in communication.  I would highly recommend this team on any barn or arena project.

    —Ron K.
