Back to Back Shedrows

Back to Back Shedrows

The Noble Back to Back Shedrow is an ideal set up for daily stall rentals at Fairgrounds and other public Event Centers. The simple and economical design also makes our Shedrow System perfect for equine breeding or boarding facilities. Facilities requiring more stall space can benefit from this system, as it offers the highest number of stalls using the least amount of acreage.

Our Standard Back to Back Shedrow utilizes a sequence of 10’x10’ or 12’x12’ Covered Event Stalls in a side-by-side and back-to-back layout. The back of each stall measures 10’ high and is solid to the 8’ high mark. Divide walls are sloped from 10’ high down to 8’ high and are also solid to 8’ high. Event Stall Fronts are used for entrance into each stall. This System is expandable with our modular design, you may add sections (in 2 stall increments) to an existing Noble Back to Back Shedrow. Standard sizes available in configurations starting at four stalls and up.

  • A long, rectangular structure with a red metal roof and beige walls set on a dirt lot in a rural area with open fields and distant hills under a partly cloudy sky.

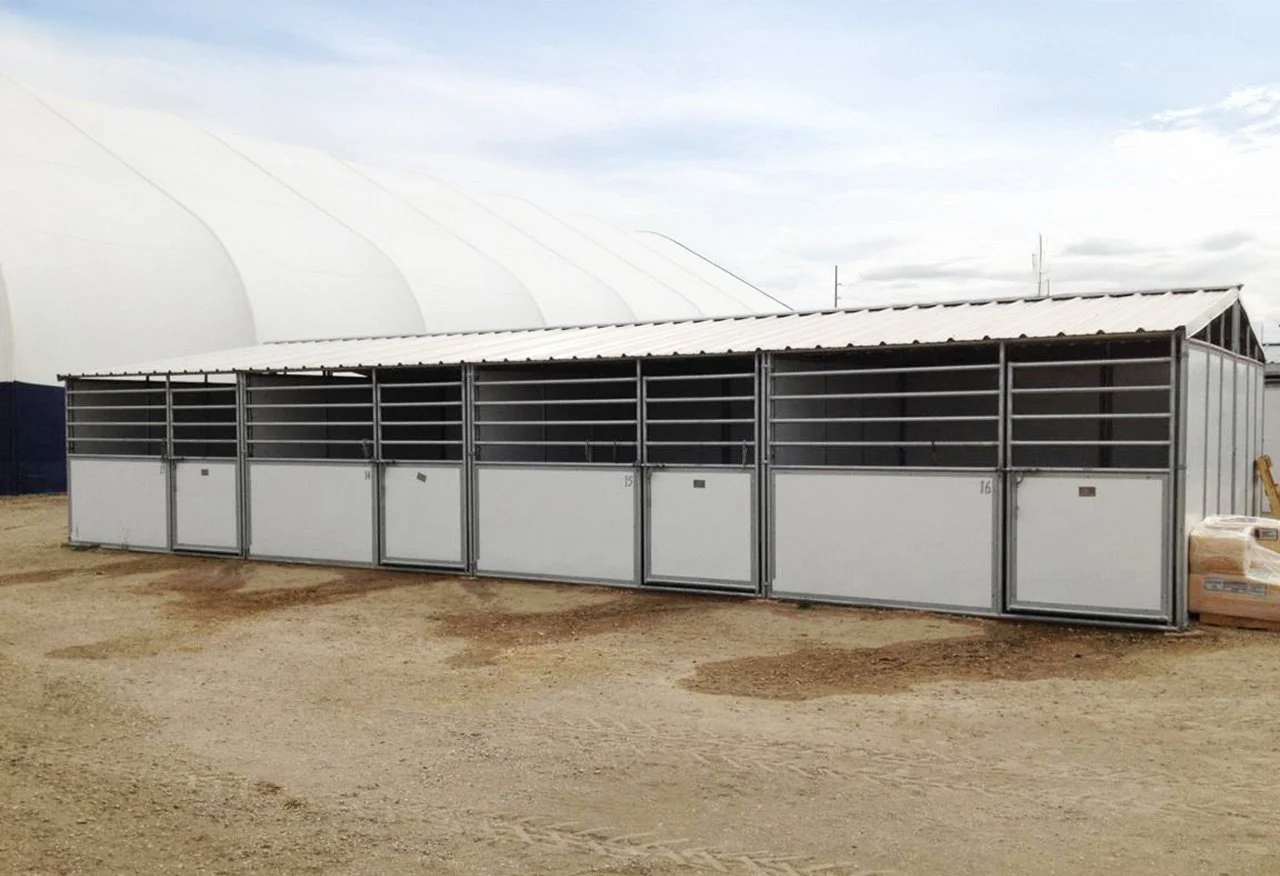

  • Metal animal stalls or cages on a dirt ground outside, with a semi-transparent roof overhead and a larger white structure in the background.

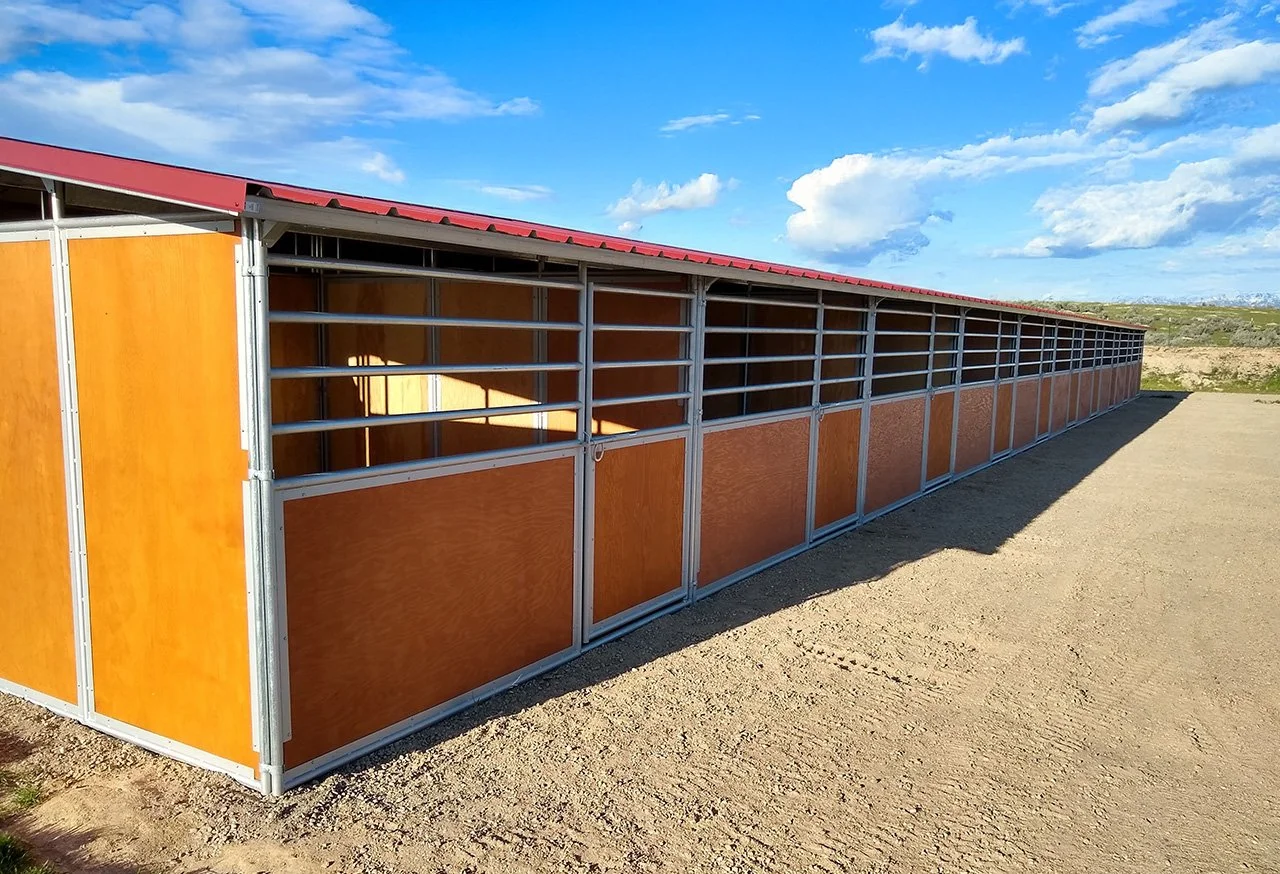

  • An outdoor horse stall building with a metal frame, wood panels, and a red roof in a rural area under a blue sky with clouds.

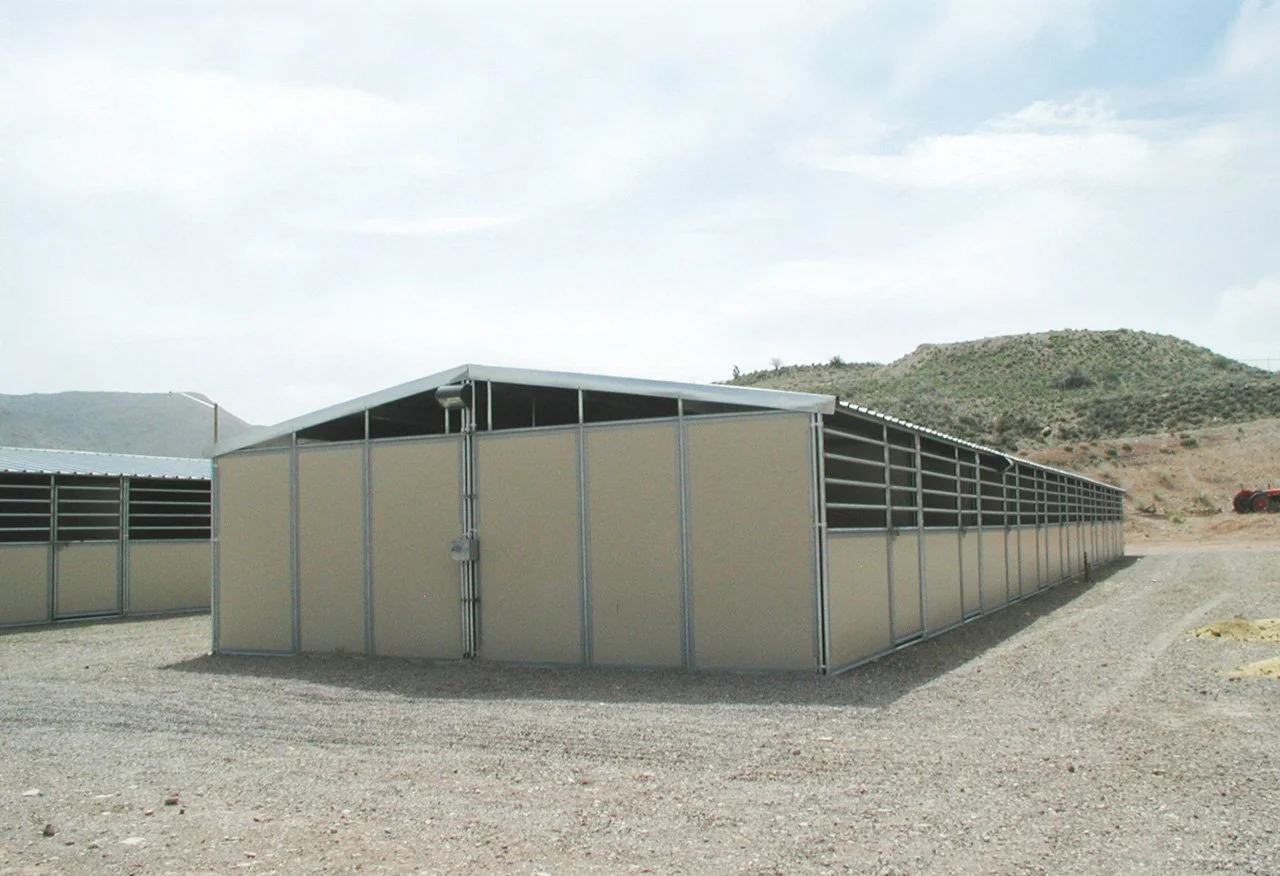

  • Long metal structure with a corrugated roof in a barren desert landscape with mountains in the distance.
  • Aerial view of multiple metal buildings with white roofs on a desert landscape.
  • Metal storage sheds in a desert landscape with hills in the background.

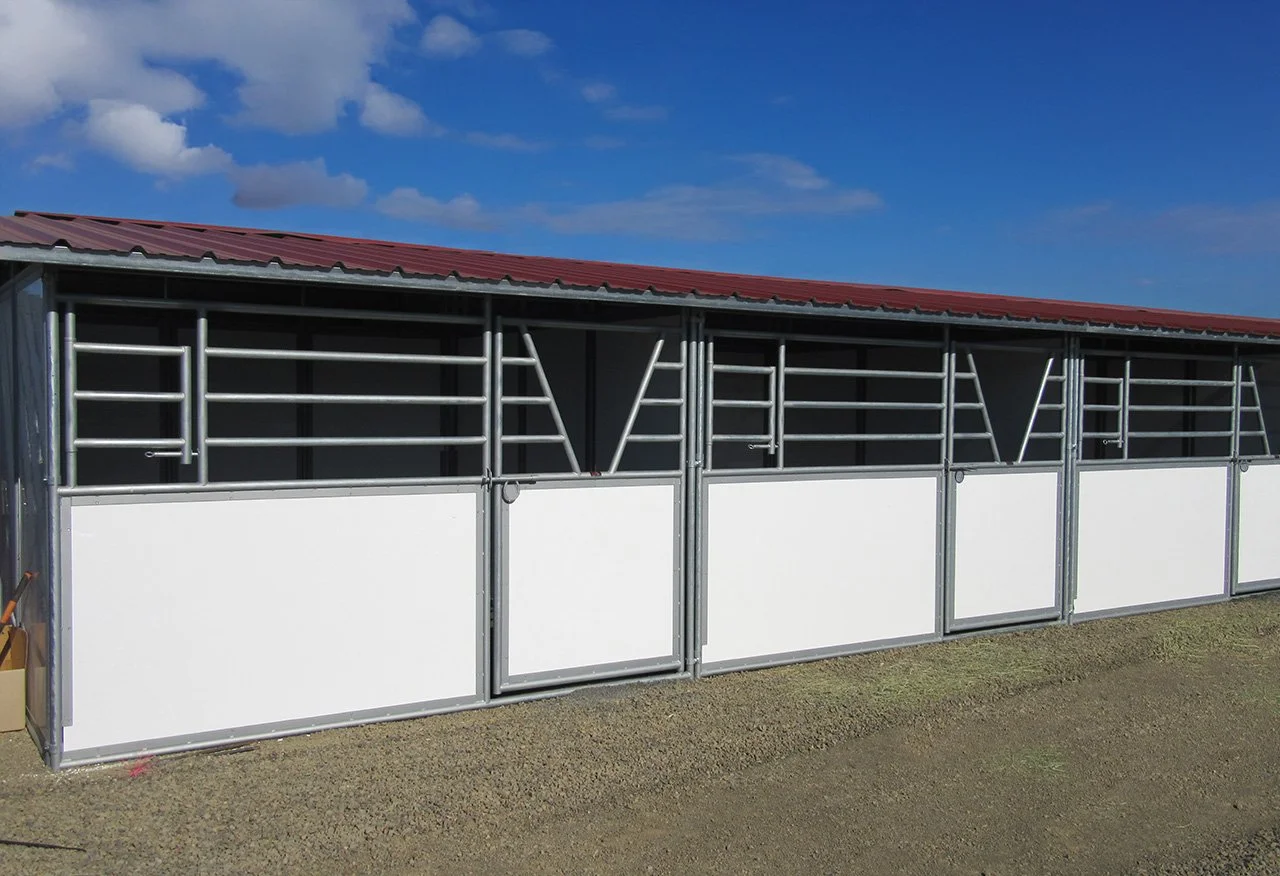

  • A new horse stable with a red metal roof, metal bars for stalls, and white lower panels, set against a blue sky with a few clouds.

We use a heavy 15 gauge Round Galvanized Steel Tube to manufacture our Shedrow Systems. The 1 7/8” diameter material we fabricate with is made right here in the USA. We chose this material for its superior strength and longevity.

Noble Shedrow Event Stall Systems are fabricated to accept ¾” board (ACX Plywood, Poly/Ply Board, or FRP Board). A unique plywood mounting flange is used to secure each piece of wood in place. Once the plywood is cut to size (as per cut diagram) it will get mounted against the mounting flange with a T-Nut and Machine Screw (supplied in each installation kit). This design allows each sheet of wood to be recessed inside the steel frame (to prevent horses from chewing on wood).

As with all Noble Structures, they are sold standard as a frame kit. Additional options include: Noble Board (ACX Plywood, Poly/Ply Board, or FRP), Roof Metal/Trim, and Insulation (heat reflector in warm weather and heat retainer in cold weather).  Also available is our One Foot Roof Overhang Package. This can be added to enhance the overall look of the Barn and to provide more weather protection.
